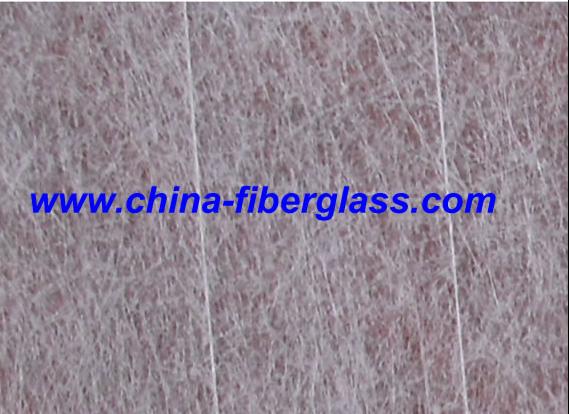

Fiberglass Roofing Tissue (fiberglass veil,fiberglass fleece), is mainly used as excellent substrate material for APP or SBS modified bitumen membrane. It is characterized as high tensile strength, corrosion resistance, easy soakage by bitumen, and so on. The longitudinal strength and tear resistance can be further improved by incorporating reinforcements into the tissue across its whole width. The substrate, made of fiberglass roofing tissue, is not easy to crack, ageing and rot.
Technical data
|
Items |
Unit |
fiberglass roofing tissue |
|
|
|
F-WM-50 |
F-WM-60 |
F-WM-90 |
F-WM-45/T |
F-WM-50/T |
F-WM-60/T |
F-WM-90/T |
|
Linear density of reinforcement yarn |
Tex |
|
|
|
32/68 |
|
Yarn space |
mm |
|
|
|
15/30 |
|
Area weight |
g/m 2 |
50 |
60 |
90 |
45 |
50 |
60 |
90 |
|
Binder Content |
% |
＜25 |
|
Tensile Strength MD |
N/5cm |
160 |
160 |
300 |
170 |
190 |
230 |
330 |
|
Tensile Strength CD |
N/5cm |
80 |
110 |
200 |
70 |
80 |
100 |
200 |
|
Roll Width |
mm |
1000 |
|
Roll Length |
m |
1500/3000 |
2400 |
1500 |
1600/3400 |
1500/3100 |
2400 |
1500 |
|
Roll Diameter |
mm |
＜1170 |
|
Paper Core Internal Dia |
mm |
76/152 |
F-WM-45/T
Roll length:3400 or 1600m
Roll width:1000mm
Yarn space:15 mm
Packing:palstic film
Loading capacity for 40'container:44rolls (149600SQM)or 115rolls(1840000SQM)
F-WM-50/T
Roll length:3100 or 1500m
Roll width:1000mm
Yarn space:15 mm
Packing:palstic film
Loading capacity for 40'container:44rolls (136400SQM)or 115rolls(172500SQM)
F-WM-60/T
Roll length:2400m
Roll width:1000mm
Yarn space:15 mm
Packing:palstic film
Loading capacity for 40'container:44rolls (105600SQM)
F-WM-55/T
Roll length:2800 or 1500m
Roll width:1000mm
Packing:palstic film
Loading capacity for 40'container:44rolls (123000SQM)or 115rolls(172500SQM)
|
