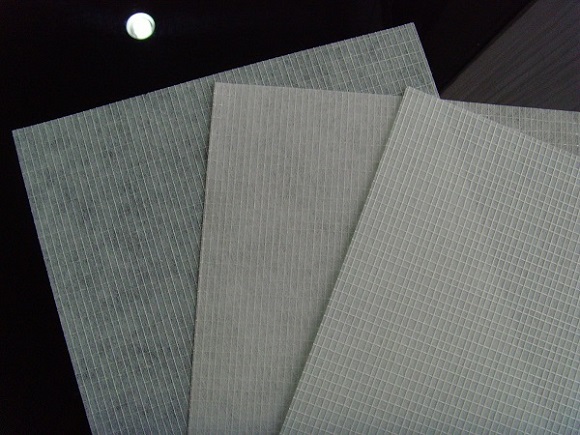

Reinforced Polyester Mat is Polyester Mat be reinforced by Fiberglass Scrim or Polyester Scrim, which mainly used as excellent substrate material for APP or SBS modified bitumen membrane, oil pipe wrap material, Geotextile material, reinforcement of sports floor, reinforcement and waterproof of high-way, airport run way, and so on. The reinforced polyester mat is characterized as high tensile strength, corrosion resistance, easy soakage by bitumen, and so on. The tensile strength of the reinforced polyester mat is adjustable by changing the tex of the yarn and mesh size to meet different demand on tensile strength from the customers.
Features
1.Low cost.
2.Application friendly.
3.Ageing resistance.
4.High heat resistance.
5.Extending the life of waterproof bitumen membrane and road.
6.Increasing the tensile strength and tear strength of waterproof bitumen membrane.
Application
1.To wrap the pipe line.
2.To be used as substrate material of waterproof bitumen membrane.
3.To be used as reinforce material of sports floor.
4.To be used as paving mat to reinforce, waterproofing and anti crack of the hight way, airport run way and so on.
5.To be used as Geotextile material.
Technical Data
|
Product Code |
PF90-45P |
PF110-45P |
PF145-45P |
PF180-110P |
PP100-45P |
PMP260/700 |
|
Structure |
Polyester Mat +Fiberglass Scrim |
Polyester Mat +Fiberglass Scrim |
Polyester Mat +Fiberglass Scrim |
Polyester Mat +Fiberglass Scrim |
Polyester Mat + Polyester Scrim |
Polyester Mat + Fiberglass scrim +Fiberglass Mat |
|
Area Weight(g/m2) |
90 |
110 |
145 |
180 |
100 |
260±10 |
|
Tensile Strength MD (N/5cm) |
700 |
700 |
1100 |
960 |
600 |
700 |
|
Tensile Strength CD (N/5cm) |
250 |
700 |
900 |
660 |
500 |
700 |
|
Density of warp and weft (ends/cm) |
3X1 |
3X1.6 |
3X2.1 |
4X1.6 |
2X1.6 |
3X1.6 |
|
Polyester Mat Weight (g/m2) |
45 |
45 |
45 |
110 |
45 |
100 |
|
Roll Length(M/Roll) |
110 |
1100 |
850 |
650 |
1100 |
250 |
|
Roll Dia (mm) |
760 |
760 |
760 |
760 |
760 |
760 |
|
Paper Core Dia(mm) |
76 or 152 |
76 or 152 |
76 or 152 |
76 or 152 |
76 or 152 |
76 or 152 |
|
Width (mm) |
1002 |
1002 |
1002 |
1002 |
1002 |
1002 |
|
Elongation at Break ( % ) |
4 |
4 |
4 |
4 |
20 |
4 |
|
Loading Capacity( Rolls/40’HC) |
114 |
114 |
114 |
114 |
114 |
114 |
|
