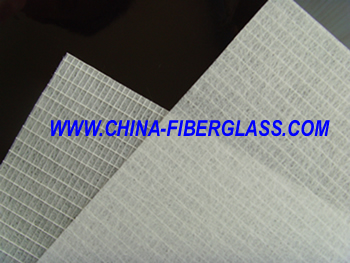

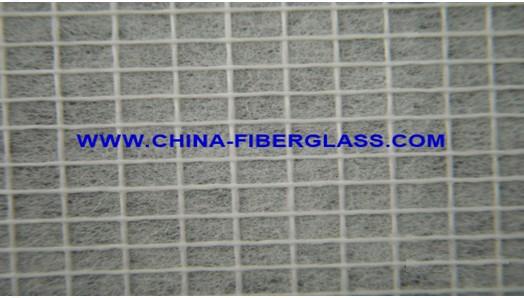

Reinforced Fiberglass Mat is Fiberglass mat be attached to fiberglass scrim, the fiberglass scrim gives very strong tensile strength on both machinery direction and cross direction. The tensile strength is adjustable by adjusting the open of the scrim and tex of the yarn, so the reinforced fiberglass mat can be produced according to the requirement on the tensile strength from the customers.
Characteristics
The reinforced fiberglass mat is characterized as high tensile strength, high tear
strength, corrosion resistance, easy soakage of bitumen, low elongation and so on.
Application
1.Excellent substrate material for APP or SBS modified bitumen membrane.
2.Idea base material for pipe wrapping.
3.Express way and airport runway.
4.High strength sport floor
Technical Data
|
Item |
Specification |
|
Item No. |
FM60/35F |
FM95/35F |
FM110/50F |
FM120/60F |
FM130/60F |
FM135/50F |
FMF140/800 |
|
type |
Fiberglass mat + fiberglass scrim |
Fiberglass mat + fiberglass scrim |
Fiberglass mat + fiberglass scrim |
Fiberglass mat +fiberglass scrim |
Fiberglass mat + fiberglass scrim |
Fiberglass mat + fiberglass scrim |
Fiberglass mat +fiberglass scrim + fiberglass mat |
|
Area Weight (g/M2) |
60±5 |
95±5 |
110±10 |
120±10 |
130±10 |
135±10 |
140±10 |
|
Mat Weight (g/M2) |
35 |
35 |
50 |
60 |
60 |
50 |
40 |
|
Width (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Mesh Open (ends/cm) |
2x1 |
3x1.6 |
3x1.6 |
3.0x1.6 |
2x1.6 |
3.0x1.6 |
3.0x1.6 |
|
MD & CD yarns (Tex) |
68x68 |
68x136 |
68x136 |
68x136 |
136x136 |
136x136 |
68x136 |
|
Roll Diameter （mm） |
1180 |
1180 |
1180 |
1180 |
1180 |
1180 |
1180 |
|
Core Diameter （mm） |
76, or 152 |
76, or 152 |
76, or 152 |
152 |
152 |
152 |
152 |
|
Moisture （%） |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Binder Content (%) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Tensile Strength MD（N/5cm） |
≥450 |
≥700 |
≥700 |
700 |
900 |
1200 |
800 |
|
Tensile Strength CD（N/5cm） |
≥250 |
≥700 |
≥700 |
700 |
700 |
700 |
800 |
|
