Home > Products

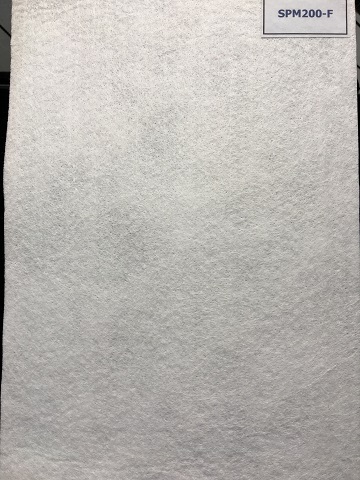

Spunbond Polyester Mat



Spunbond Polyester Mat is produced with continuous polyester fiber, a kind of advanced waterproof material, which has very high tensile strength and good elongation. Spunbond polyester mat effects by soaking with bitumen, also is used in many fields, such as waterproof bitumen membrane, underground project, bridge surface, waterproof of tank and antiseptic material for building base.

Features:

1. High tensile strength and very good elongation

2. Good penetration with bitumen

3. Anti-corrosion

4. Anti-aging

5. Application friendly.

Application:

1. To be used as substrate material of waterproof bitumen membrane.

2. To wrap the pipe line.

3. To be used as paving mat to reinforce, waterproofing and anti crack of the high way, airport run way and so on.

Technical Data

Item

Unit weight

Roll

Width

Tensile strength MD

Tensile strength CD

Elongation

At Max.

Tensile strength

Free load shrinkage at 200℃

Mositure

content

Loading quantity



g/m2

MM

N/5CM

N/5CM

N/5CM

%

%

Rolls/40’GP

SPM100

100

1020

≥300

≥260

20

≤2

≤2

44

SPM150

150

1020

≥350

≥350

25

≤2

≤2

44

SPM170

170

1020

≥420

≥420

30

≤2

≤2

44

SPM200

200

1020

≥500

≥500

30

≤2

≤2

44

SPM250

250

1020

≥800

≥800

38

≤2

≤2

44

SPM280

280

1020

≥800

≥800

38

≤2

≤2

44

SPM310

310

1020

≥1050

≥1050

42

≤2

≤2

44
